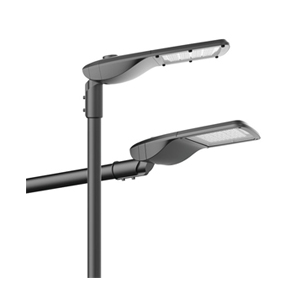

QHL 08

Mã sản phẩmqhl-08

Giá:Liên hệ

Excellent heat radiation,optical and electrical ability

Die-cast Aluminum body with powder-coating and anti-corrosion treatment Diffuser with 4.00mm/5.00mm super white toughened glass

Humanized design concept,easy to install and maintain

Description

Luminaire available from 20 to 250W

Body made of die-cast aluminium

Polyester powder coating. Any colour available Colour temperature: 3000K-6500K

Main Characteristics Luminaire

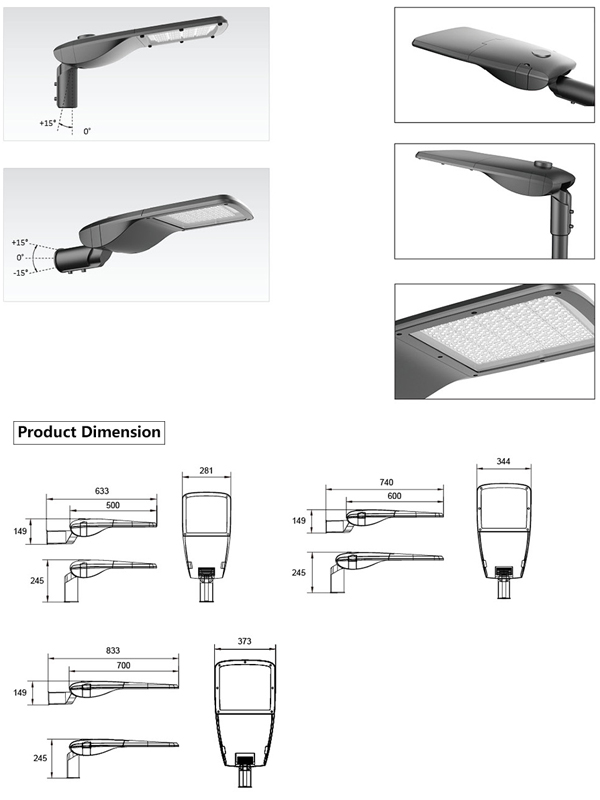

Size:	C-580X240X149mm B-740X344X149mm C-840X400X149mm
LED Source:	CREE or PHILIPS
Body & Top Cover:	High Pressure Die Casting Aluminum
Color Rengering Index:	Ra>75
Optical unit:	High efficiency performance alum
Diffuser:	4/5mm thinckness ultra-thin glass
Connection to column:	60mm; With dregee adjustable
Power Factor:	>0.95
Classification:	IP66
Impact Resistance:	Ik09
Electrical Class:	Class ll

Main Characteristics Luminaire
